Test Indicator Gauge

Precision Dial Test Indicator With Pointer Metric

Test Indicator Gauge Precision Metric Mechanical Measurement Clamps and Box Dial Test Indicator Precision Metric with Dovetail rails 0-0.8mm 32mm.

Dial readings with three digits, 0-40-0 for example, signify that the indicator has a balanced dial. Dial readings with two digits, 0-100 for example, indicate the dial has a continuous dial. Balanced dials are used for reading the difference from a specific surface reference point. Continuous dials are used for direct readings and usually have a larger measurement range than balanced dials.

Specifications :
Face: 1-1/4" diameter yellow face
Dial type and reading: 0-40-0 balanced inch and 0-.25-0 balanced metric readings
Range: 0-0.8mmGraduations: 0.0005"/0.01mm
Contact point length: 1/2"Dovetail clamps: 3/8" and 5/32"
Mounting type: Dovetail

Features :
Fowler inch/metric dial test indicator with a yellow face is designed to measure surface variations in narrow or recessed areas0-0.8mm measuring range, 0.0005"/0.01mm graduations, 0-40-0 balanced inch readings, and 0.001mm balanced metric readings.
Auto-reversing contact point and adjustable bezel.
Three dovetail mounts for mounting indicator from the top, back, or front.
One-piece housing with a satin chrome finish provides durability.
The dial test indicator is designed for taking measurements in machining, layout, and inspection work.
Has microfine black graduations for 0-40-0 balanced inch readings and red graduations for 0.001mm balanced metric readings.
A movement and an auto-reversing contact point provide smooth action.
A knurled bezel rotates 360 degrees to zero the reading at any location.
Three dovetail mounts on the top, back, and front of the indicator provide a range of mounting options.
The one-piece housing and satin chrome finish provide durability.

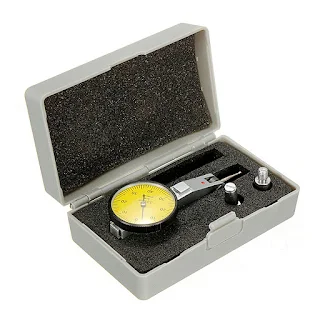

Package included :
1pc x dial test indicator

1pc x 3/8" dovetail clamp

1pc x 5/32" dovetail clamp
1pc x Storage case Check out our other items!
