ER16 Spring Collet CNC Milling Lathe

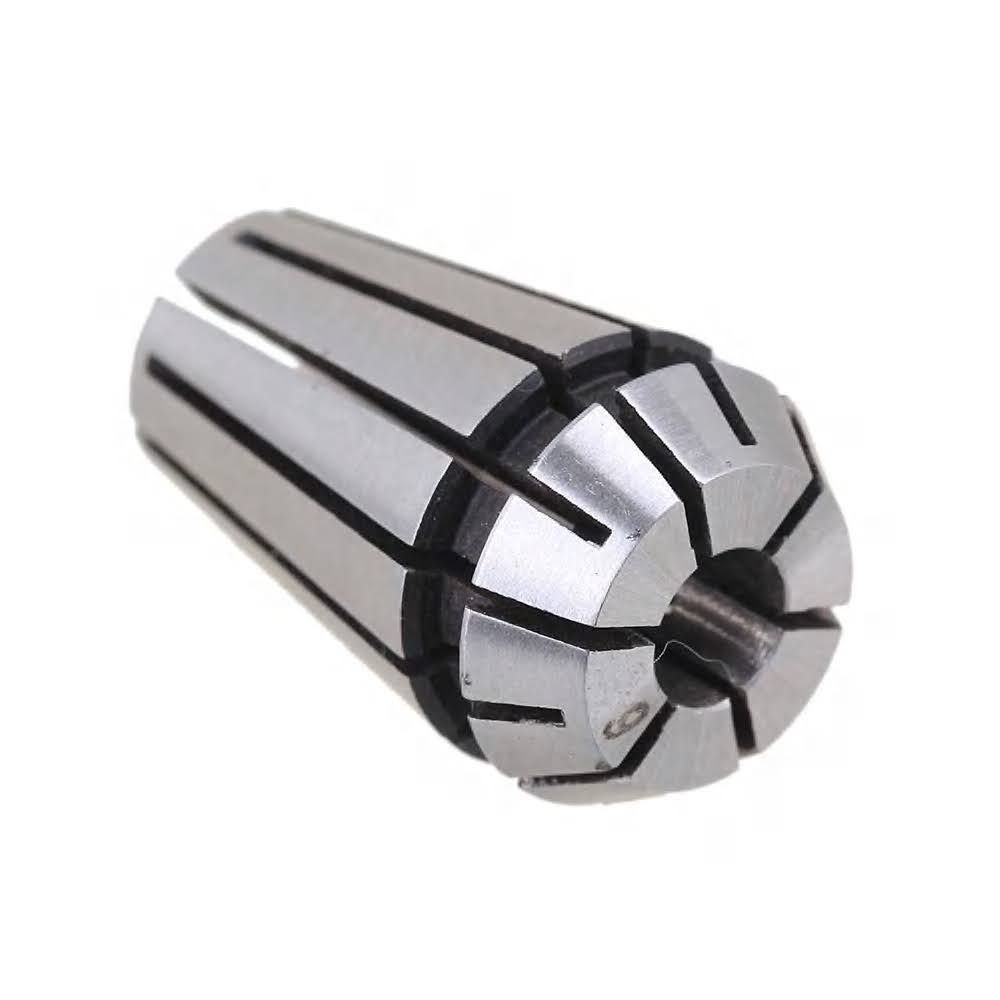

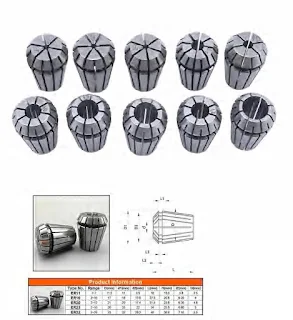

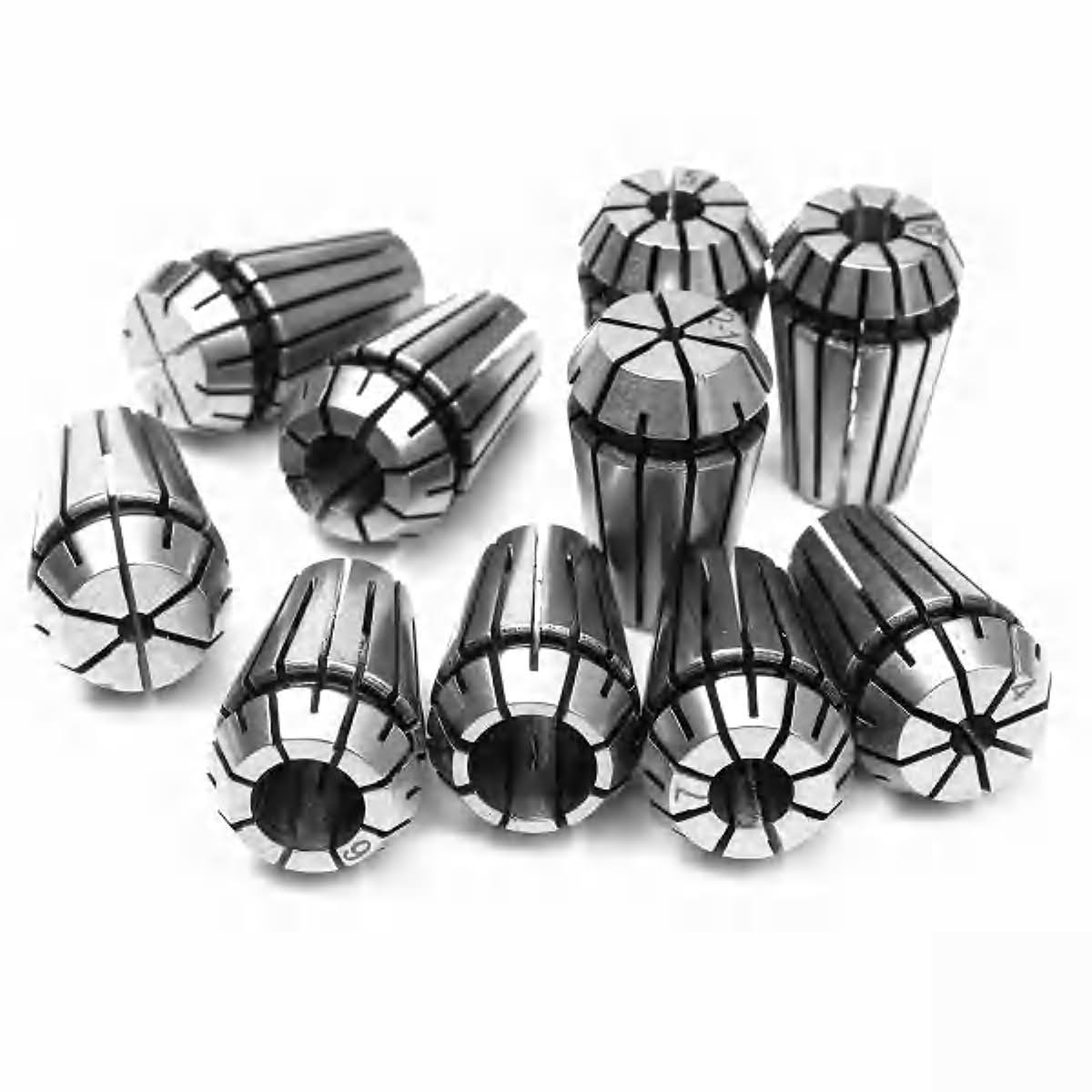

Tool Set 10 pcs ER16 Spring Collet Set for CNC milling Lathe Tool & Workholding Engraving machine-made of high-grade spring Carbon Steel. Hardened & precision ground.

Specification:
Item: Spring Collet
Model : ER16 Color: Metallic Silver
Material: High Grade 1065 Carbon Steel 20Mn.
Run-Out Tolerance : 0.015mm (0.0006")
Hardness: HRC 56~60
Total height: 27.5mm / 1-5/64 inch.
Outer diameter(Max): 16mm / 5/8 inch.

Gripping Range :
1mm to 10mm / 3/64" - 25/64"
1mm / 3/64 inch
2mm / 5/64 inch
3mm / 1/8 inch
4mm / 5/32 inch
5mm / 13/64 inch
6mm / 15/64 inch
7mm / 9/32 inch
8mm / 5/16 inch
9mm / 23/64 inch
10mm / 25/64 inch

Features:
ER16 precision spring collet, ground roughness is Ra0.4 Microns, plus overall fine polish.
Used in boring, milling, drilling, tapping, CNC, sculpture and other processing operations.
Also can be supported used with the holder of CNC tool.
Big clamping force, wide clamping range, high accuracy.

Package included :
10pcs x ER16 Spring Collet CNC Milling Lathe Engraving Machine.


#ER16 #Spring #Collet #CNC #Milling #Lathe
0932426 - 04001193961217A - 04000110103480A - 01005001721120902A - 0A

price/$28.87

off/-37%

size/ER16 Set of 10 pcs
